Palm Kernel Shell Rice Husk Biomass Gasification Power Plant Pyrolysis Syngas Generation Plant in Indonesia
Project Contents: By using raw materials like municipal solid waste (MSW), wood chips, crop straws, saw dust, coconut shells, rice husks, palm kernel shell, coal powder and used tire, we can get biomass through gasification process. After filtering, de-hydrating, tar-removing and other necessary treatments, the biomass will be delivered to gas tank, and finally to gas engine for power generating. And at the same time, CHP System (heat collect boiler) can make heat recovery from exhaust gas to get hot water or steam, which can realize comprehensive and high-efficiency utilization of the power plant.
Typical gas composition
From feedstocks wood chip
From feedstocks rice husks
Gas Quality Suggested
Biomass Gas Generator Technical Features
Power Biomass Generator Set is driven by low speed engine of 300 series, coupled with Siemens alternator, power ranging from 300kw up to 500kw. The applicable fuel can be biomass including biomass gas, wood gas, Straw Gas and coal gas etc. Our biomass engines can work at reliable performance, easy for maintenance and much longer life-span Our generators enjoy hot markets in overseas markets including Italy, Russia, Ukraine, Latvia, Croatia, Serbia, South Africa, Tanzania, Philippines, Thailand, Indonesia, Korea and Japan etc.
Why Zichai Gas Generator Set?
1. Development and manufacturing internal combustion engine since 1970
2. Factory area over 330000m2 & over 2200 employees
3. Highly versatile power generator with ability to handle more than 20 different gases
4. More than 200 employees dedicated to developing and improving power generator for various gas.
5. More than 1000 systems installed in over 20 countries using a variety of gases.
6. More than 50 people in the Customer Service Department making the Organization very Customer Responsive.
Project References
FAQ
1.Are you a trading company or manufacture?
Manufacture with factory.
2.What kinds of gas generator set do you produce?
It covers for all kinds of gas produced in agriculture and industry, including biomass gas, biogas, natural gas, coal mine gas, coke oven gas, semi-coke gas and syngas, as well as related gas produce equipment.
3.What is your delivery time?
Normally within 60days, it depends on the configuration and quantity, please confirm with us before order.
4.What is your payment terms?
T/T or L/C.
5.How do you pack products?
Standard export packaging. Equipment packing with plastic bag, and with new solid wooden box, suitable for long-distance sea transportation, moisture-proof, earthquake, rust-proof and anti-brutal handling.
6.What is your available port of shipment?
Normally Qingdao port, other ports available according to customers' requirement.
Project Contents: By using raw materials like municipal solid waste (MSW), wood chips, crop straws, saw dust, coconut shells, rice husks, palm kernel shell, coal powder and used tire, we can get biomass through gasification process. After filtering, de-hydrating, tar-removing and other necessary treatments, the biomass will be delivered to gas tank, and finally to gas engine for power generating. And at the same time, CHP System (heat collect boiler) can make heat recovery from exhaust gas to get hot water or steam, which can realize comprehensive and high-efficiency utilization of the power plant.
Typical gas composition
From feedstocks wood chip
Component | CO | H2 | CH4 | CmHn | H2S | CO2 | O2 | N2 |
Percentage | 23.5% | 7.68% | 5.32% | 0.75% | --- | 10% | 0.11% | 52.4% |
Component | CO | H2 | CH4 | CmHn | H2S | CO2 | O2 | N2 |
Percentage | 17.2% | 4.05% | 6.82% | 1.24% | --- | 15.1% | 0.8% | 54.7% |
Gas Quality Suggested
- Gas temperature≤40ºC
- Gas pressure 2.5~10kPa
- Pressure change rate≤1kPa/min
- Calorific value ≥ 4.0MJ/Nm3
- Moisture content≤40g/Nm3, no free water
- Impurity content≤30mg/Nm3
- Impurity size≤5μm
- Tar content≤50mg/Nm3
- H2S≤50mg/Nm3
- Total sulfur≤100mg/Nm3
- NH3≤20mg/Nm3
- Cl≤50mg/Nm3
- H2≤50%
- O2≤1%
| Item | Technical specification | |||||
| Engine | Model | 6300D/M | 6300D/M-1 | 8300D/M-1 | 8300D/M-2 | 8300D/M-3 |
| Type | Inline, water cooled, four stroke, spark plug ignition | |||||
| Non-turbocharged | ||||||
| Cylinder number | 6 | 8 | ||||
| Cylinder diameter (mm) | 300 | |||||
| Rated speed(r/min) | 500 | 600 | 500 | 600 | 600 | |
| Rated power (kW) | 400 | 440 | 500 | 550 | 660 | |
| Rated thermal consumption(MJ/kW·h) | ≤11.0 | |||||
| Rotate direction (From flywheel) | Clockwise | |||||
| Start mode | Compressed air/motor start | |||||
| Exhaust temperature (ºC) | ≤600 | |||||
| Oil consumption(g/kW·h) | ≤0.8 | |||||
| Generator set | Type | 350GFM | 400GFM | 450GFM | 500GFM | 600GFM |
| Rated power(kW) | 350 | 400 | 450 | 500 | 600 | |
| Frequency(HZ) | 50 | |||||
| Voltage(V) | 400/6300/10500 | |||||
| Current(A) | 631/40/24 | 722/46/28 | 812/52/31 | 902/57/34 | 1083/69/41 | |
| Power factor (COSΦ) | 0.8 (Lagging) | |||||
| Phase and connecting | 3phases 4wires /3phases 3wires | |||||
| Dimension (L×W×H) (mm) | 5800×1600×2900 | 6400×1600×2900 | ||||
| Weight(kg) | 18000 | 22000 | ||||
Power Biomass Generator Set is driven by low speed engine of 300 series, coupled with Siemens alternator, power ranging from 300kw up to 500kw. The applicable fuel can be biomass including biomass gas, wood gas, Straw Gas and coal gas etc. Our biomass engines can work at reliable performance, easy for maintenance and much longer life-span Our generators enjoy hot markets in overseas markets including Italy, Russia, Ukraine, Latvia, Croatia, Serbia, South Africa, Tanzania, Philippines, Thailand, Indonesia, Korea and Japan etc.
Why Zichai Gas Generator Set?
1. Development and manufacturing internal combustion engine since 1970
2. Factory area over 330000m2 & over 2200 employees
3. Highly versatile power generator with ability to handle more than 20 different gases
4. More than 200 employees dedicated to developing and improving power generator for various gas.
5. More than 1000 systems installed in over 20 countries using a variety of gases.
6. More than 50 people in the Customer Service Department making the Organization very Customer Responsive.

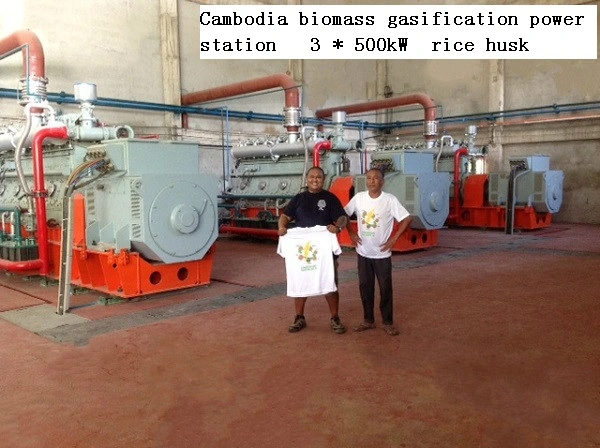

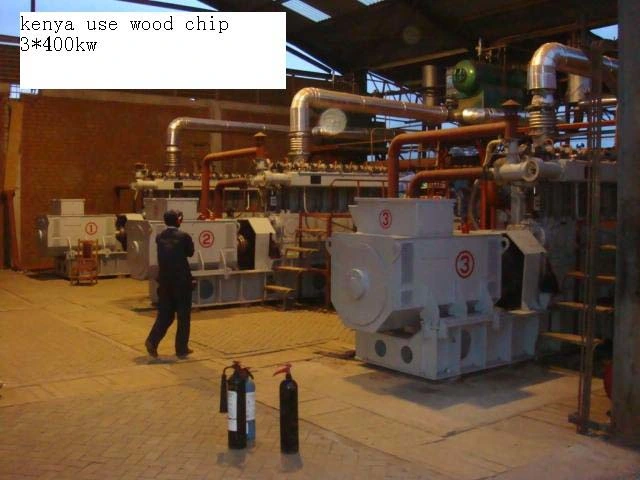

Project References
FAQ
1.Are you a trading company or manufacture?
Manufacture with factory.
2.What kinds of gas generator set do you produce?
It covers for all kinds of gas produced in agriculture and industry, including biomass gas, biogas, natural gas, coal mine gas, coke oven gas, semi-coke gas and syngas, as well as related gas produce equipment.
3.What is your delivery time?
Normally within 60days, it depends on the configuration and quantity, please confirm with us before order.
4.What is your payment terms?
T/T or L/C.
5.How do you pack products?
Standard export packaging. Equipment packing with plastic bag, and with new solid wooden box, suitable for long-distance sea transportation, moisture-proof, earthquake, rust-proof and anti-brutal handling.
6.What is your available port of shipment?
Normally Qingdao port, other ports available according to customers' requirement.
