Product Description
     tire recycling rubber powder machine rubber machinery


Advantage of our tyre recycling machine:

1.  More than 20 years of experience.
2. Patented Products,1/3 energy saving!
3. CE & ISO9001 certificate.
4, 2 years warranty for the machines and 3 years for the rollers.
5, fully automatic production line, only need 1-2 worker to operate the whole plant. no need add any machine more.



Process flows:
Tire recycling production line is used to produce the waste tyre into rubber powder or rubber powder. It can treat both radial tyre and nylon tyre, get rid of the nylon or steel in the waste tire.
waste tires--- tire debeader--- tire cutting--- tire shredding--- tire crushing --- magnetic separating--- fiber separation-packaging-put in storage.

Scrap Used Tyre Shredder Machine Tire Recycling Shredder Used Tyre Cutting Equipment

This production line including the below:
Name of equipmentQuantity(set)Instruction
Pre-cutting equipmentTire debeader1To draw out the steel wire from tire bead
Tire cutter1To cut the big tires into rubber pieces
Tire Shredder1To cut the whole tire into rubber blocks
conveyor belt 2Separately delivery the whole tires to tire shredder and feed the rubber blocks to tire crusher.
Scrap Used Tyre Shredder Machine Tire Recycling Shredder Used Tyre Cutting Equipment

Tyre Crusher: used to crush the rubber block into 5-100 mesh rubber powder
Model No.XKP-350XKP-400XKP-450XKP-560XKP-560D
Diameter of front roll300mm(groove)400 mm (groove)450 mm (groove)560 mm (groove)560 mm (groove)
Diameter of back roll300mm(groove)400 mm (groove)450 mm (groove)510 mm (groove)560 mm (groove)
Drum working length500mm600mm760mm800mm800mm
Front roll liner speed26.234.5 m/min38.0 m/min40.6m/min44m/min
Roll ratio1:2.51:2.51:2.51:2.51:2.5
Max roller spacing8 mm8 mm8 mm8 mm8 mm
Motor power37KW45KW55KW75KW132KW
Weight6T8.512 T13 T25T
Scrap Used Tyre Shredder Machine Tire Recycling Shredder Used Tyre Cutting Equipment

Relevant Auxiliary Equipment:

Name of equipmentQuantity(set)Instruction
Relevant Auxiliary EquipmentMain vibrating screen1Separate the rubber powder for the first time (5-10 mesh)
Vice vibrating screen1Separate the rubber powder for the second time (the final size of rubber powder we need)
Conveyor belt1To transfer the rubber powder that couldn't meet the mesh  requirested back to tire crusher and crush again
Fiber separator1Separate the nylon from rubber powder
Magnetic separator2Separate the steel wire from rubber powder
RemarkThe above equipments constitute the complete set of waste tyre recycling machine, no need add any machine more.

Scrap Used Tyre Shredder Machine Tire Recycling Shredder Used Tyre Cutting Equipment

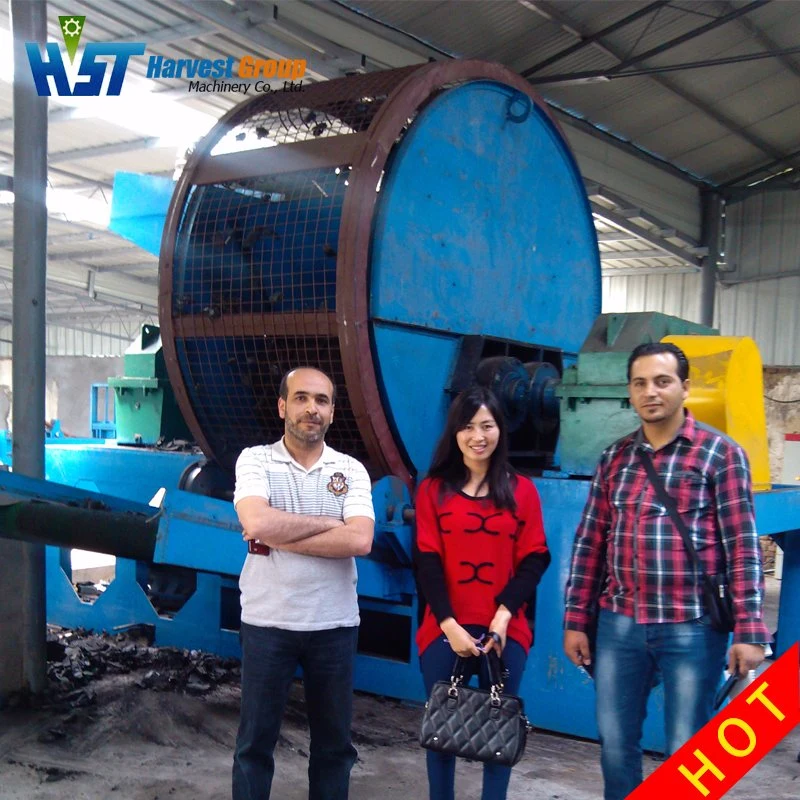

Success cases :
Scrap Used Tyre Shredder Machine Tire Recycling Shredder Used Tyre Cutting Equipment
Scrap Used Tyre Shredder Machine Tire Recycling Shredder Used Tyre Cutting Equipment

For more information, please feel free to contact us:
Mob: 86 18238829088
