Company Profile
Our Qingdao Longyuan Baihong Machinery Equipment Co., Ltd is a big manufacturer for Pyrolysis Equipment for 22 years in China. We located at Qingdao-----a beautiful and Industry developed city.We established in year 1997, our main products are environment pyroloysis equipment.The company has passed ISO9001 certification, CE certification and SGS international third party certification.To the overall design, production and manufacturing, installation and commissioning, technical training, after-sales service in the whole industrial chain operation of high-tech enterprises.
Product details

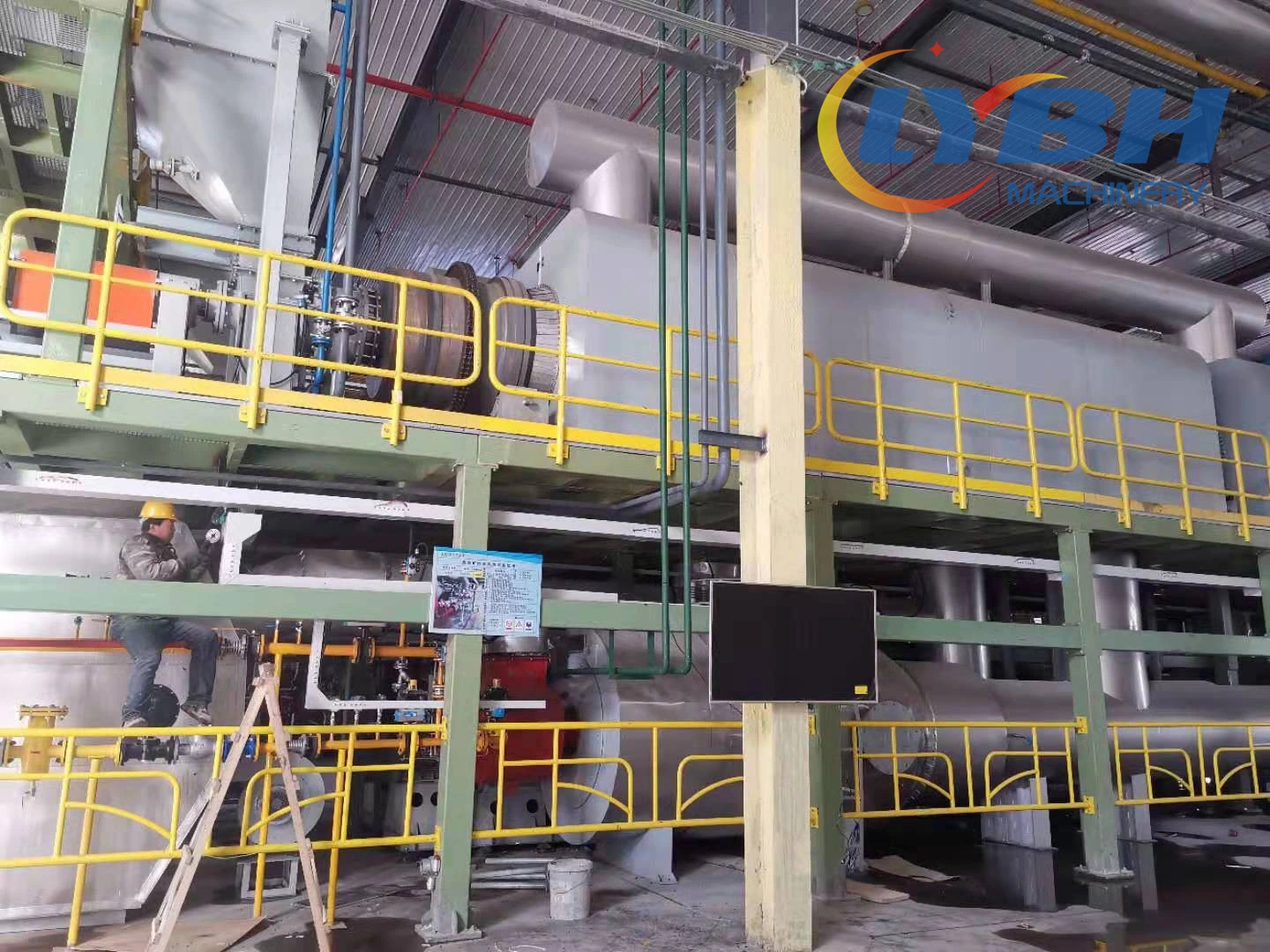

The waste tire pyrolysis plant is decomposed into oil vapor by high temperature pyrolysis technology, and the oil vapor enters the cooling system through the oil gas separator, wherein the oil flows to the oil tank, and the pyrolysis gas passes through water seal to the gas recovery system to become the main furnace fuel. Realize continuous production.
No | Specification | Fully continuous waste tyre/plastic/rubber prolysis plant | |||
1 | Model | BH-FC30 | BH-FC40 | BH-FC50 | BH-FC60 |
2 | Working type | Fully continuous | Fully continuous | Fully continuous | Fully continuous |
3 | Raw Material | Waste tires,waste rubber,waste plastic,waste acrylic,oily sludge | |||
4 | 24 hour handling capacity | 30T | 40T | 50T | 60T |
5 | 24 hour oil production | 14T | 18T | 22T | 27T |
6 | Heating way | Directly heating | Directly heating | Directly heating | Directly heating |
7 | Working pressure | Ordinary pressure | Ordinary pressure | Ordinary pressure | Ordinary pressure |
8 | Cooling way | Water cooling | Water cooling | Water cooling | Water cooling |
9 | Water consumption | 10T/H | 12T/H | 16T/H | 20T/H |
10 | Noise | ≤85DB(A) | ≤85DB(A) | ≤85DB(A) | ≤85DB(A) |
11 | Total weight | 60T | 68T | 75T | 80T |
12 | Area | 47*10*9M | 53*10*9M | 55*10*9M | 58*10*9M |
Products Process
1.Raw Material
2.Final Products
Our Advantages
a: Adopting automatic submerged-arc welding technology
b: All of the welding will be detected by the ultrasonic nondestructive testing method to ensure the welding quality and the
welding shape.
1.Quality warranty period: One year warranty for the main reactor of pyrolysis machines
and lifetime maintenance for complete set of machines.
2.Our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's
workers on operation, maintenance, etc.
1.Outstanding Features:
a. The reactor need preheat at the first when the machine starts producing.
b. 24h continuous working for 20-30 days without any stops.
c. No need fuels, sync gas is recycled during the operation.
d. Large daily capacity:20-25T/D;25-30T/D
e. New desing of vertical condensers. Good oil quality with high profit.
f. Low requirement on the raw materials.
2. Security:b. 24h continuous working for 20-30 days without any stops.
c. No need fuels, sync gas is recycled during the operation.
d. Large daily capacity:20-25T/D;25-30T/D
e. New desing of vertical condensers. Good oil quality with high profit.
f. Low requirement on the raw materials.
a: Adopting automatic submerged-arc welding technology
b: All of the welding will be detected by the ultrasonic nondestructive testing method to ensure the welding quality and the
welding shape.
c: Adopting manufacture process controlling system on the quality, every manufacture process, manufacture date, etc.
d: Equipped with anti-explosion device, safety valves, emergency valves, pressure and temperature meters, as well as the alarming
system.
system.
3. Environmental-friendly:
a: Emission Standard: Adopting special gas scrubbers to remove acid gas and dust from smoke
Our servicea: Emission Standard: Adopting special gas scrubbers to remove acid gas and dust from smoke
b: Smell during operation: Fully enclosed during the operation
c: Water pollution: No pollution at all.
d: Solid pollution: the solid after pyrolysis is the crude carbon black and steel wires which can be deep-processed or sold
directly with its value.
workshop
directly with its value.
workshop
1.Quality warranty period: One year warranty for the main reactor of pyrolysis machines
and lifetime maintenance for complete set of machines.
2.Our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's
workers on operation, maintenance, etc.
3. Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc. to the buyer.
4. For the damage caused by the users, our company provides the parts and accessories with cost price.
5. Our factory supplies the wearing parts with the cost price to clients.
